Name: Beaumont Rev City Electric Bike (Step Through) - Eggshell
SKU: 1586909

Product Details ＋

Jump-start your journey

Modern meets vintage

Assisted power

Designed for comfort

Super slick, extra quick

Pedal with assisted power and speed up to 20mph across town, whether you're on a quick market run or racing to class. Beaumont Rev is as sleek and stylish as our vintage style Beaumont, with the added oomph of E-bike technology. You can decide if the E stands for electric, easy, or eco-friendly. All work.

A bike with a boost

Get a head start on your destination. Beaumont Rev's Start Aid gets your bike rolling for you without the initial wobbles. Once you're cruising, pedal assist technology provides push power and speed, while the throttle gives you an extra boost when you need it.

Kick back and keep up

Regardless of age, fitness level, or experience, an electric bike is an equalizer for all riders in the fleet. Our comfort saddle and upright riding position make long, hilly bike rides with the family a breeze. Beat everyone to the finish line without breaking a sweat.

Size	Height Range	Standover Height
42cm	5' - 5'10"	19.35"

FRAMESET

- Size 42cm
- Material Steel, TIG welded
- Dropouts 2x rear dropout eyelets
- Fork Steel, 1 1/8" (28.6mm) Threaded for Quill, TIG welded, 2x eyelets: 1/dropout 1/mid-blade
WHEELSETT
- Rims Alloy double-wall, 700C x 36H x 13G
- Hubs F: Alloy bolt-on, R: Hub motor bolt-on, 36H x 13G
- Spokes 13G UCP w/brass nipples, Black
- Tires 700 x 45C, S/V
EXTRAS
- Kickstand Center mount, adjustable, steel

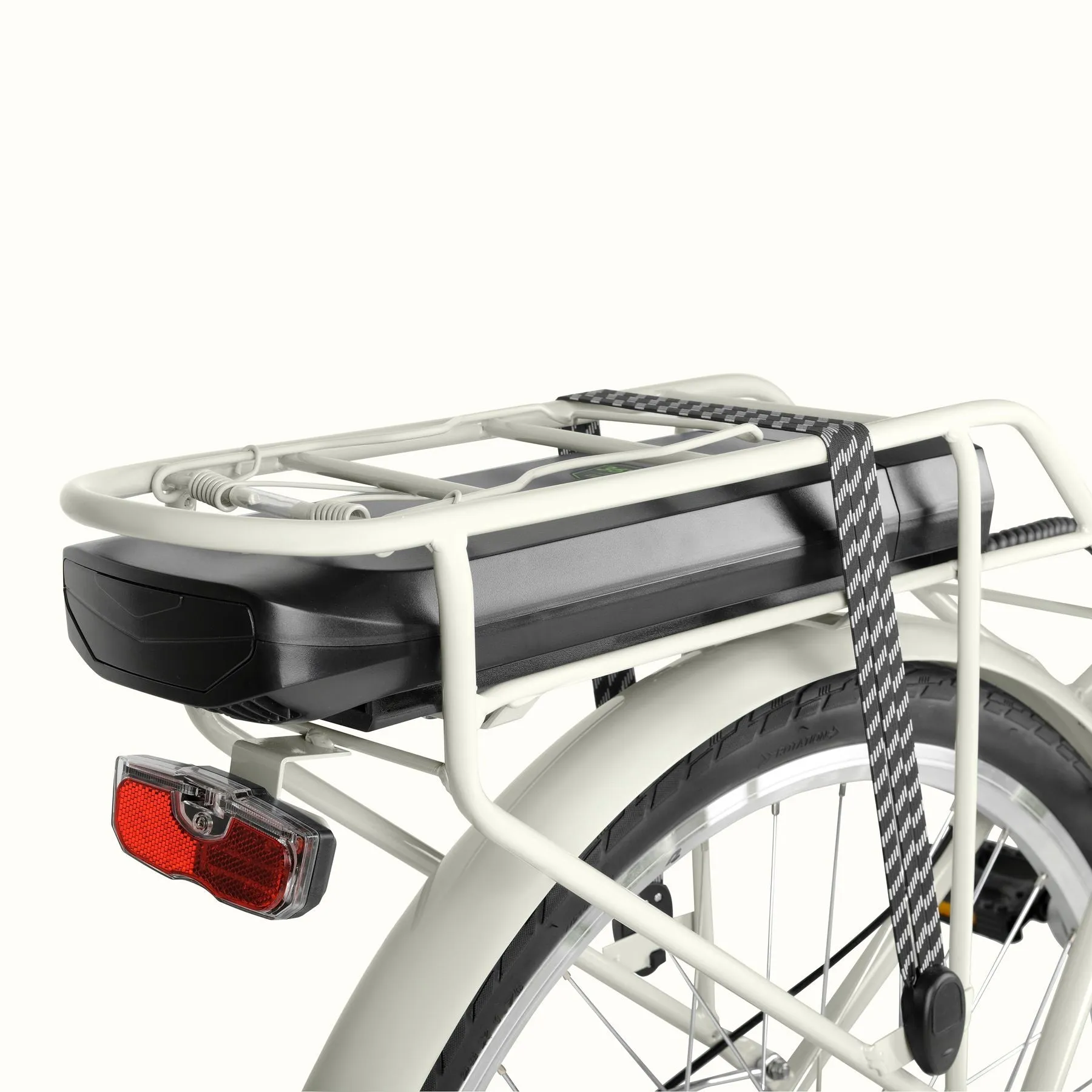

- Rear Carrier Battery holder & carrier, steel
- Bell Alloy

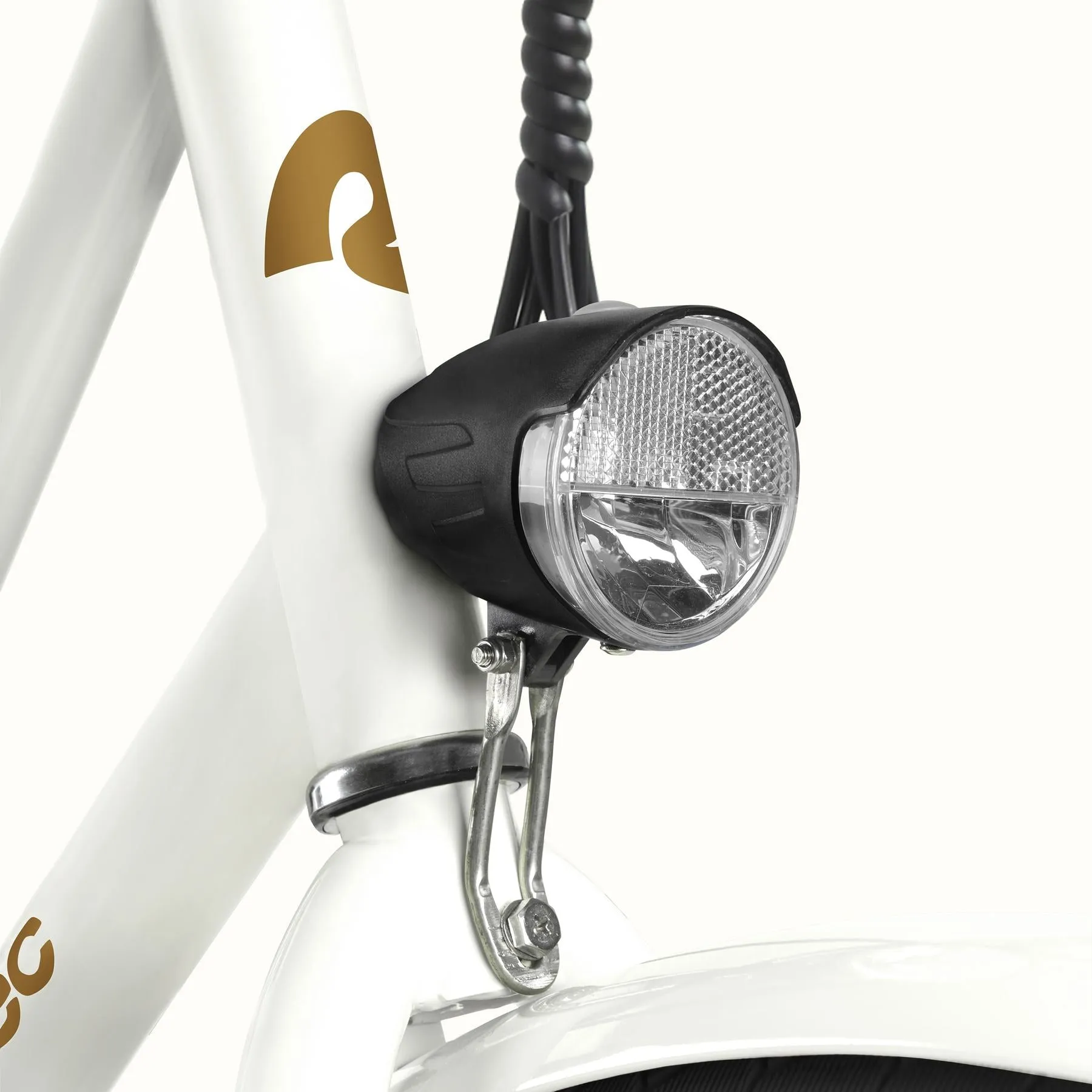

- Lights Front (4x AAA) Rear (2x AA), batteries included
- Fenders Steel fenders w/alloy stays
- Chaincover Full coverage/length, steel
- Tools 4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver
- Recommended Weight Limit 220lbs
DRIVETRAIN
- Derailleur Shimano Tourney 7S, RD-TX35-SGS

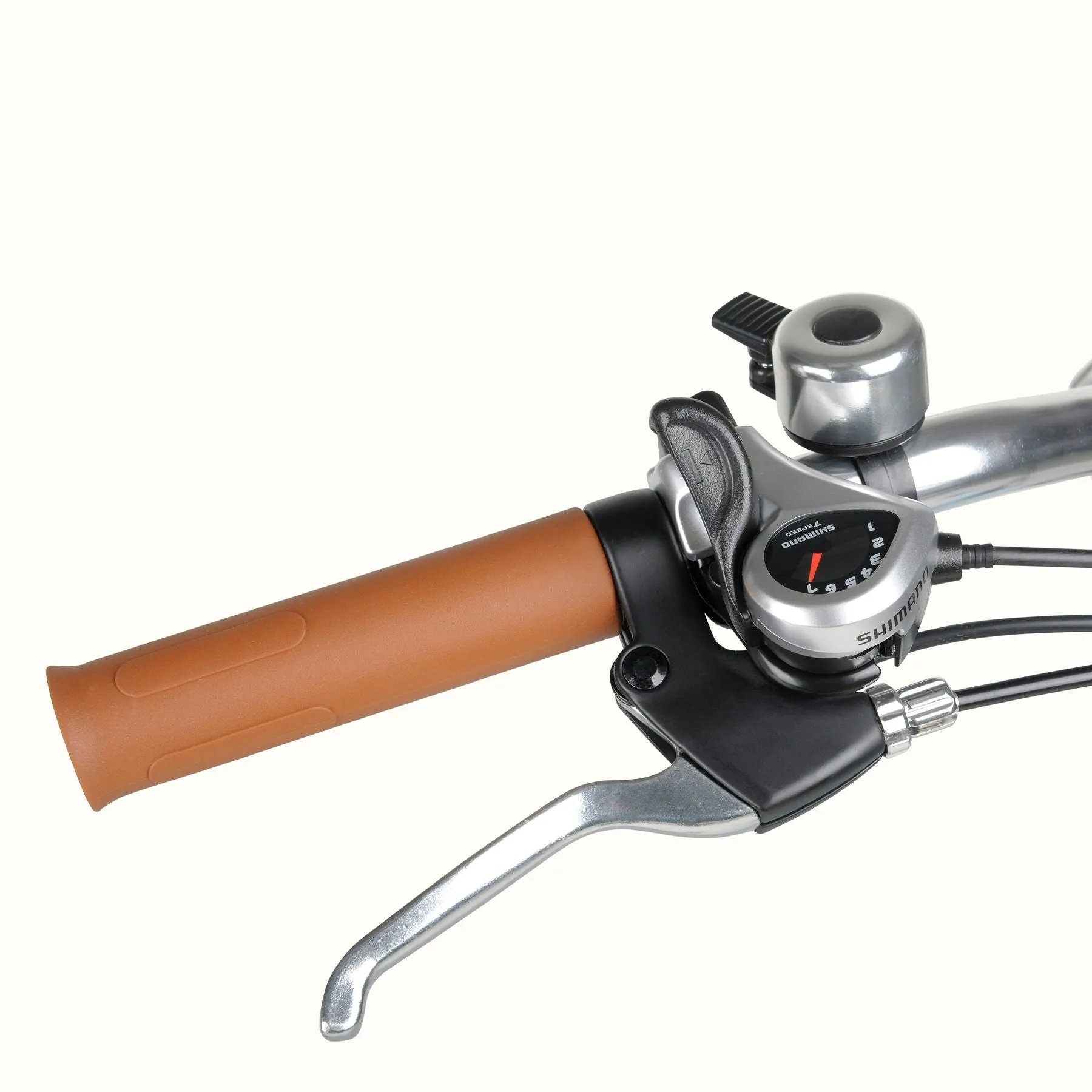

- Shifter Shimano Tourney Thumb Shifter (push/pull) 7S, SL-TX50-7R
- Crankset Alloy 3-piece 170mm x 42T, alum arms, steel chainring
- Chain KMC Z-series 1/2 x 3/32"
- BB Steel sealed cartridge, 68 x 124.5mm
- Freewheel/Cog Shimano 7-speed 14-28
COMPONENTS
- Headset Threaded, steel, 1 1/8" (28.6mm)
- Brakes JAX Mechanical disc Front & Rear, 160mm

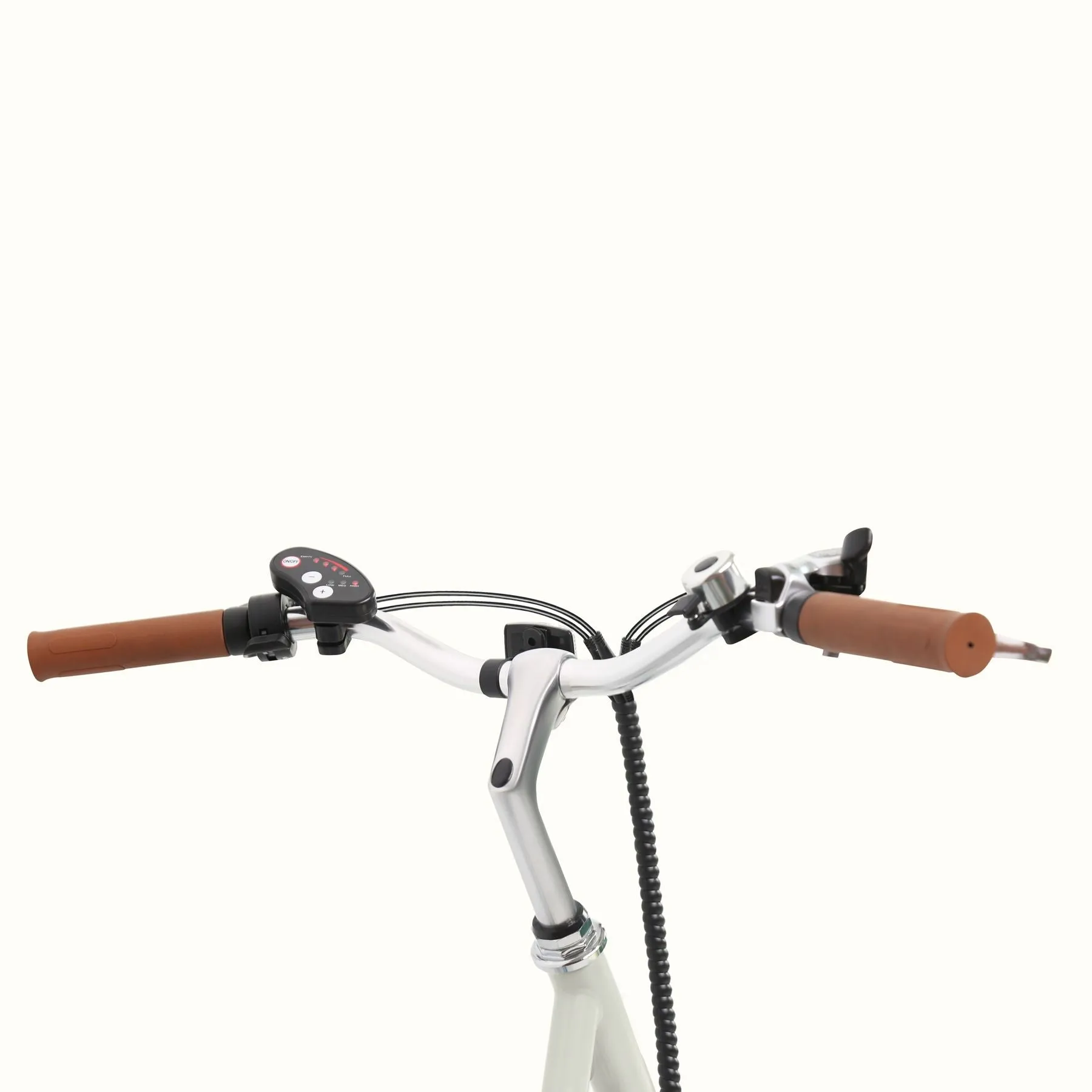

- Handlebars Alloy low-rise, 610mmW x 40mm rise
- Grips Comfort
- Stem Alloy quill, single-bolt clamp
- Saddle Comfort w/springs
- Seatpost Alloy w/integrated micro-adjust clamp, 28.6 x 300mm
- Seatpost Clamp Alloy QR
- Pedals High Impact, Reinforced Nylon Resin Platform, 9/16"
E-POWER SYSTEM
- 36V/350W Motor Brushless rear hub motor, 9-pin connector. MXUS
- 36V/350W Battery Li-ion Charger w/US plug, w/power level display. Tianjin Xianzhong New Energy Technology Co., Ltd
- 48V/500W Motor Brushless rear hub motor, 9-pin connector, MXUS
- 48V/500W Battery Li-ion Charger w/US plug, w/power level display. Tianjin Xianzhong New Energy Technology Co., Ltd

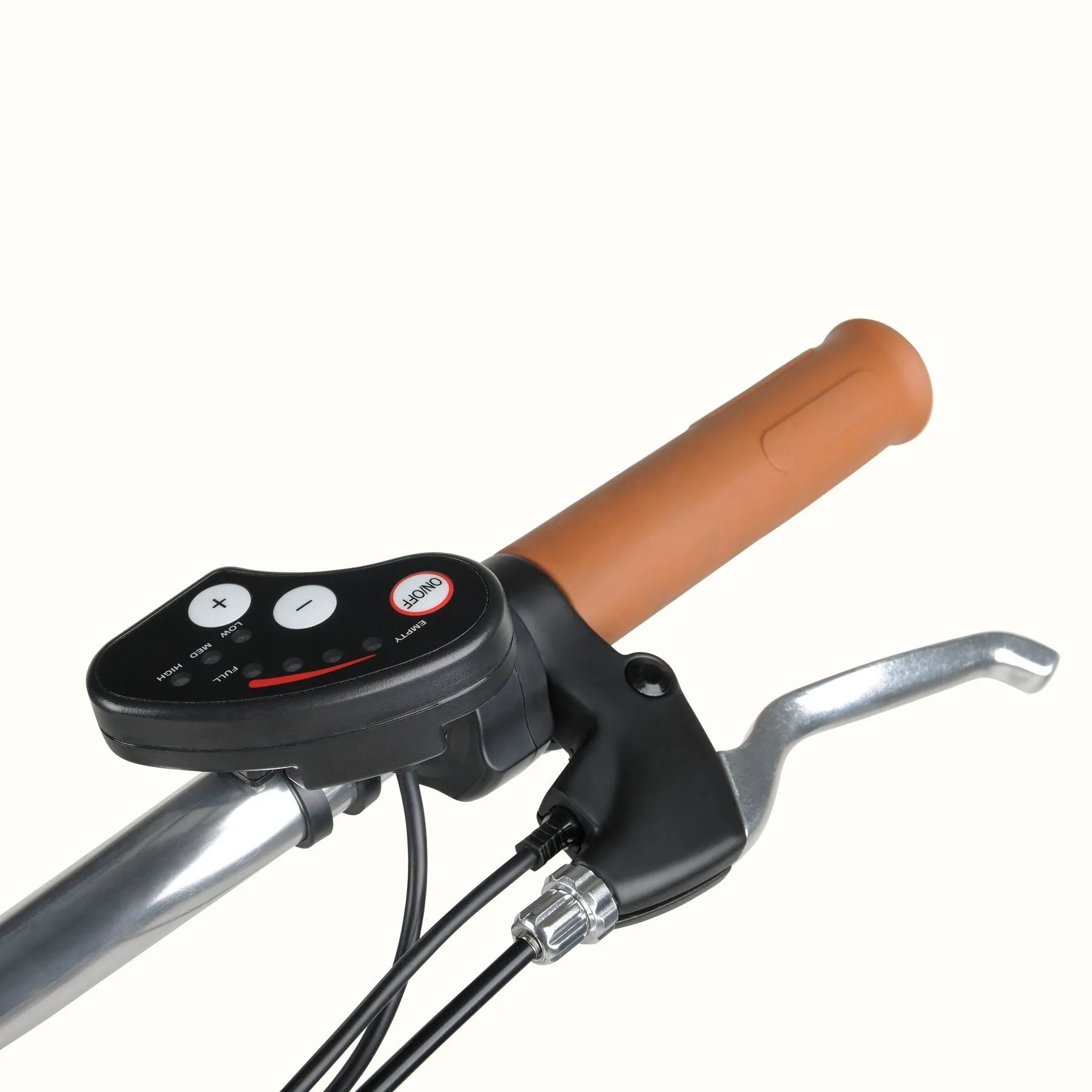

- Drive Mode Display PAS/throttle, speed sensor, LED handlebar-mount display panel w/3 assistance levels, w/Start-Aid 6kph (~4mph)
- Controller Yelchm Technology
- Charge Time (empty to full) 10.4Ah battery (350 & 500W): 5-6 hours
