Product Details
＋

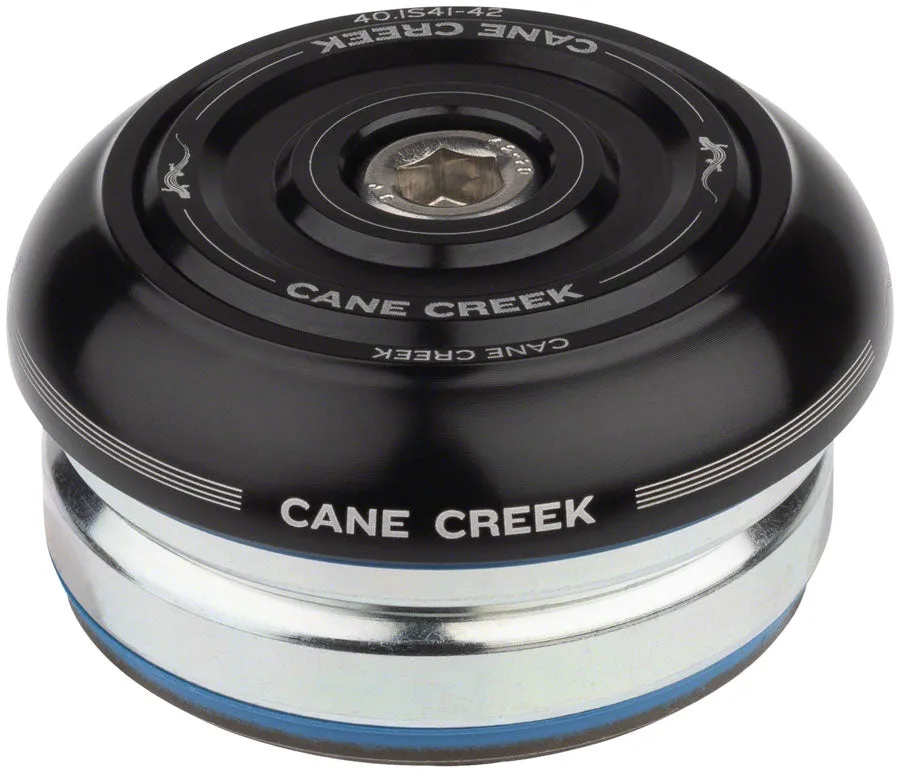

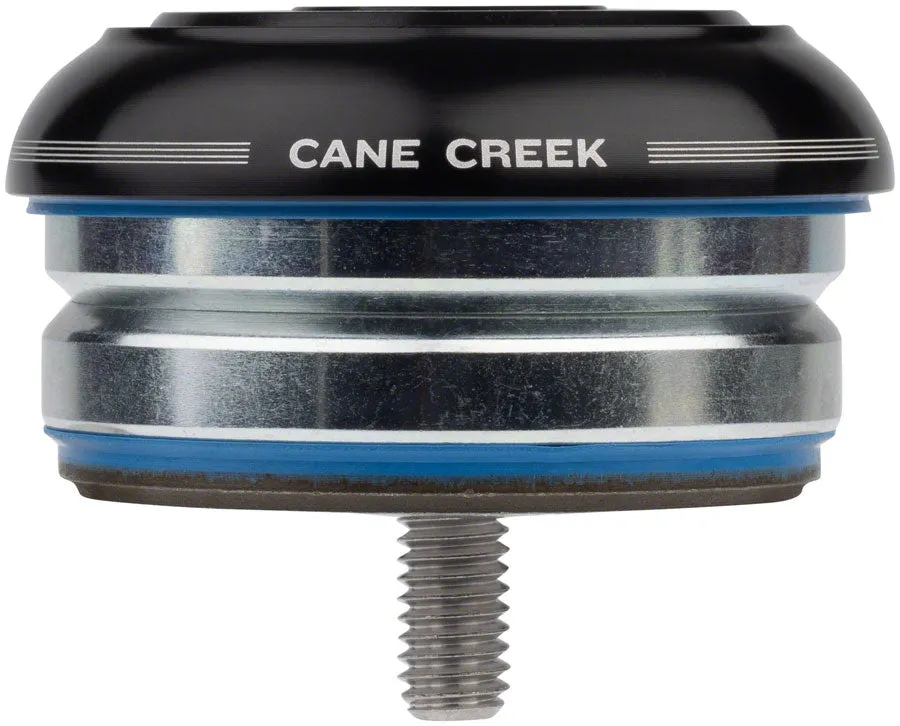

Cane Creek 40-Series. The 40-Series is the workhorse of Cane Creek's headset line-up. Representing the balance of performance, durability and value, the series incorporates all the features necessary for a robust, lightweight, long-lasting headset.
- Replaces Cane Creek IS-3 headset

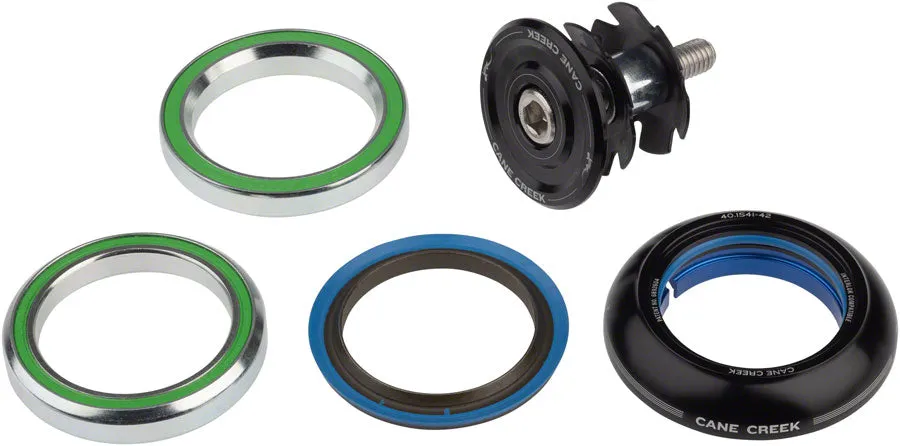

- 41mm angular contact bearings feature 36degree inner chamfer, 45degree outer (36/45)
- Directly compatible with 41mm head-tube and fits 42mm (Italian) head-tube with supplied 0.25mm shim
- Integrated (IS) assemblies feature chamfers molded inside the head-tube with no press-in cups
- 9mm stack height (short) top cover
| Item Specifications | |
|---|---|
| Color | Black |
| Weight | 71g |
| Material | AL-6061 |
| Crown Race | 30.0 |
| Stack Height | 9mm |
| Bearing Type | Black Oxide Sealed |
| Defined Color | Black |
| S.H.I.S Upper | IS41 |
| S.H.I.S Lower | IS41 |
| S.H.I.S. Clamp Diameter | 28.6 |
