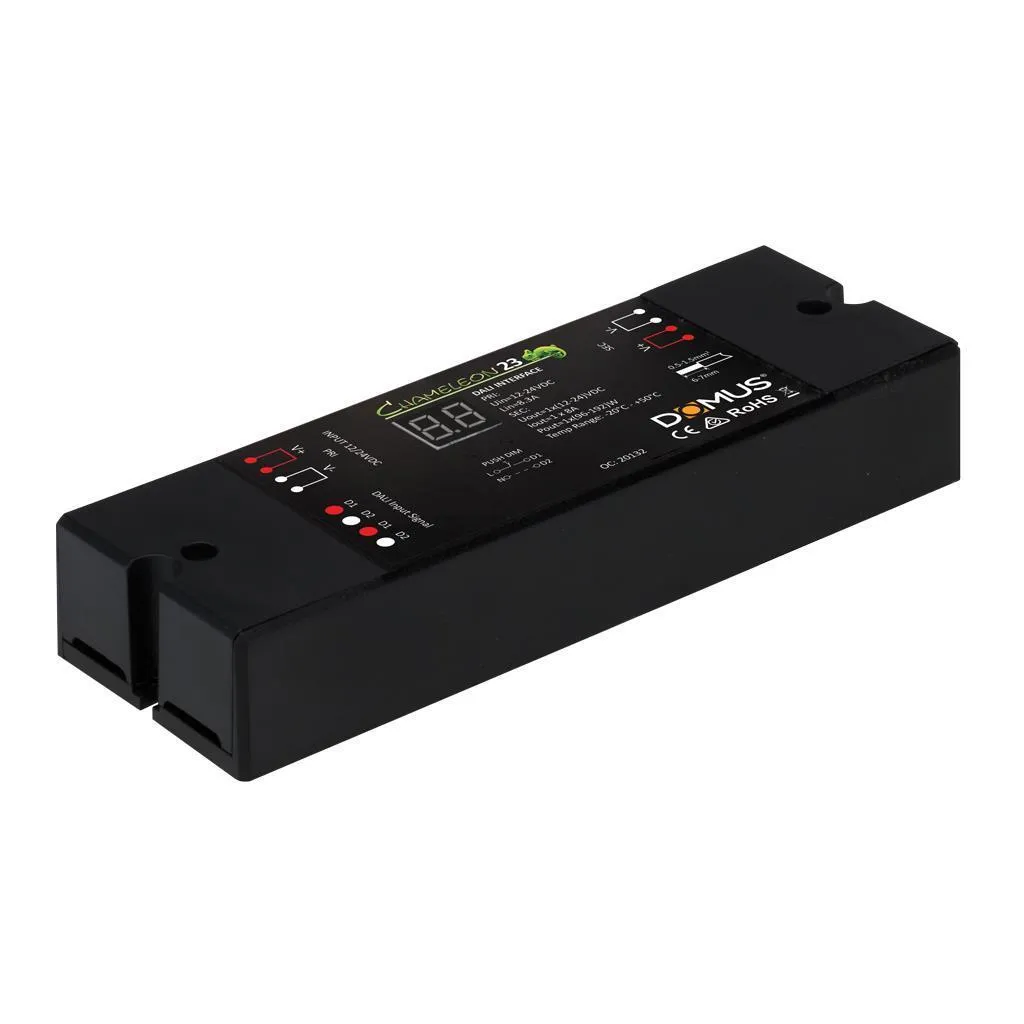

The CHAMELEON-23 is an interface designed to suit DALI dim applications. Intended for use with constant voltage 12-24VDC lighting products the CHAMELEON-23 offers seamless integration between automation systems.

Accepts standard DALI signal generated from any automation system or simple dimming using the “Push Dim” function. Featuring 1CH of dimming, allowing control over single colour LED lighting products.

The CHAMELEON-23 make integration a breeze with options for Auto addressing or manual addressing function.

Specifications:

• Product Family: Chameleon
• Application: Controller
• Type of interface: 1ch dim controller.
• Method of control: DALI or “Push Dim”*
• Method of dimming: PWM (Pulse width modulation)
• Housing colour: Black plastic colour housing
• Digital display: Yes
• Input voltage (VDC): 12-24VDC
• Output voltage (VDC): 12-24VDC
• Output current (A): 1 x 8A
• Output wattage (W): 12VDC- 96W. (x1), 24VDC- 192W (x1)
• Expandable signal: Yes**
• Requires: Constant voltage 12-24VDC LED driver ***
• Warranty Period: 3 Years
• Warranty Type: Replacement

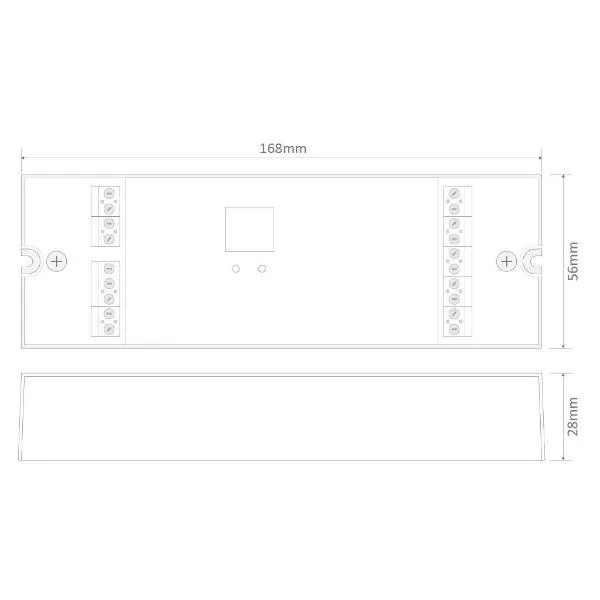

Dimension:

• Length: 169mm
• Width: 58mm
• Height: 28mm
